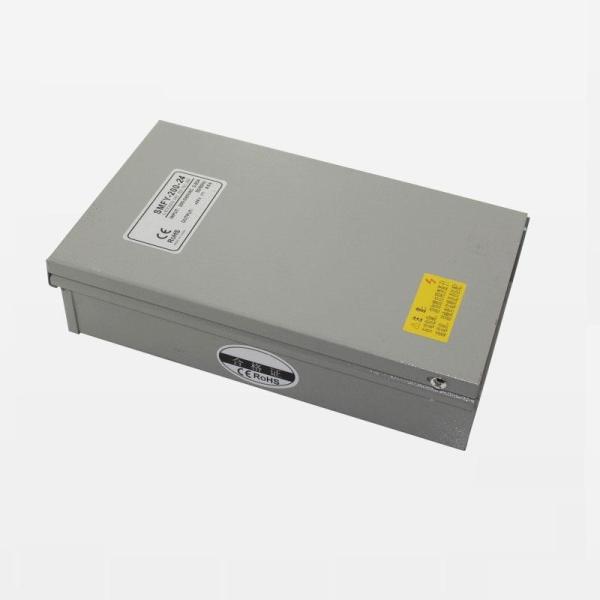

Single output rainproof power supply 200W 5V 40A SMFY-200-5

Specification:

Model number	SMFY-200-5	SMFY-200-12	SMFY-200-24
DC Output Voltage	5V	12V	24V
Output Voltage Error	± 1%	± 1%	± 1%
Rated Output Current	40A	16.7A	8.5A
Output Current Range	0-40A	0-16.7A	0-8.5A
Ripple and Noise	180mVp-p	180mVp-p	240mVp-p
DC Output Power	200W	200W	204W
Efficiency	82%	84%	85%
Adjustable Range for DC Voltage	± 10% of the rated output voltage
AC Input Voltage Range	170~264VAC 47~63Hz 240~370VDC
Input Current	1.6A/230V
AC Inrush Current	Cold-Start Current 36A/230V
Leakage Current	<3.5mA/240VAC
Overload Protection	105%~150% cut down output, auto recovery
Over Voltage Protection	115%~135%
Start, Rise, Hold time	100ms, 50ms, 20ms
Withstand Voltage	I/P-O/P: 1.5KVAC 1 minute, I/P-FG: 1.5KVAC 1 minute, O/P-PG: 0.5KVAC 1 minute
Working Temperature and Humidity	-10°C~+60°C, 20%~90%RH
Dimension	21012550 mm
Weight	1kg

Dimension unit:mm
