480W 15V 32A Single Output Switching power supply for LED Strip light AC to DC LED Driver

Specification:

Model number	S-500-12	S-500-15	S-500-24	S-500-48
DC Output Voltage	12V	15V	24V	48V
Output Voltage Error	± 1%	± 1%	± 1%	± 1%
Rated Output Current	40A	32A	20A	10A
Output Current Range	0-40A	0-32A	0-20A	0-10A
Ripple and Noise	240mVp-p	240mVp-p	240mVp-p	300mVp-p
DC Output Power	480W	480W	480W	480W
Efficiency	83%	84%	85%	87%
Adjustable Range for DC Voltage	± 10% of the rated output voltage
AC Input Voltage Range	180~264VAC 47~63Hz; 240~370VDC
Input Current	5A/230V
AC Inrush Current	Cold-Start Current 50A/230V
Leakage Current	<3.5mA/240VAC
Overload Protection	105%~135% cut down output, auto recovery
Over Voltage Protection	115%~135%
Start, Rise, Hold time	200ms, 50ms, 20ms
Withstand Voltage	I/P-O/P: 3KVAC 1 minute, I/P-FG: 1.5KVAC 1 minute, O/P-PG: 0.5KVAC 1 minute
Working Temperature and Humidity	-10°C~+60°C, 20%~90%RH
Dimension	23812465mm
Weight	1.35kg

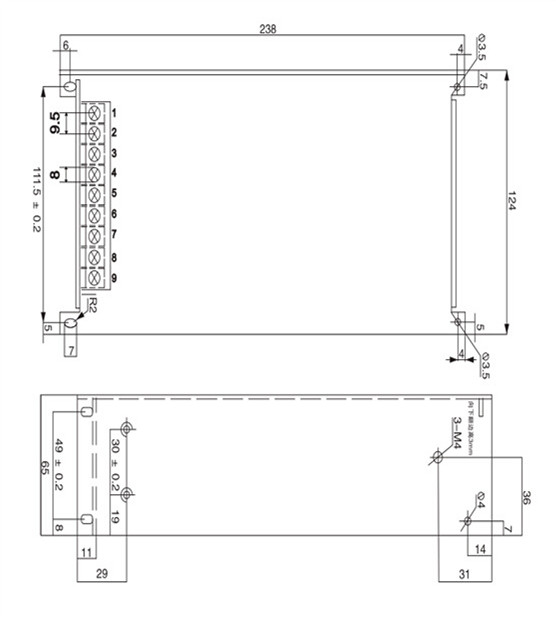

Dimension unit:mm
